Features
- High output power (8 W)
- High reliability all-fiber design
- Narrow linewidth (<10 kHz)
- Excellent power stability (<1%)
- User-friendly interface via IoT technology
- 4U 19" Rack mount to a laser head
- Certified to IEC 60825-1:2014 safety standards
Applications
- Quantum computing
- Optical lattices
- Optical dipole trapping
- Cavity stabilization
- Atom–photon interfaces
- Research
Second-Harmonic Generation (SHG)
QTekLaserTM offers laser systems with extended wavelength range by combining nonlinear frequency conversion technologies. Through second-harmonic generation (SHG) we achieve significant laser power at the visible and NIR regime (figure 2; red-shaded cells of table 1). With the development of periodic poled crystal technology and the associated waveguide technology, nonlinear frequency conversion has become a powerful tool to extend the application scope of fiber lasers. For QTekLaserTM products, the max power of the converted laser light is constrained by the damage threshold of commercially available nonlinear crystals, which is typically several tens of watts.
SFG Output Wavelength Matrix
|
SF-AMP-Tm2
(865 – 1030 nm) |
SF-AMP-Yb
(1012 – 1112nm) |
SF-AMP-Er
(1530 – 1610 nm) |
SF-AMP-Tm
(1730 – 2060 nm) |
SF-AMP-Yb
(1012 – 1112 nm) |
466 – 535 nm |
506 – 556 nm |
|
|
SF-AMP-Er
(1530 – 1610 nm) |
553 – 628 nm |
609 – 658 nm |
765 – 805 nm |
|
SF-AMP-Tm
(1730 – 2060 nm) |
576 – 687 nm |
638 – 722 nm |
812 – 904 nm |
865 – 1030 nm |
Table 1. Wavelength extension of QTekLaserTM products via nonlinear frequency conversion. The red-shaded cells represent second-harmonic generation (SHG) and the blue-shaded cells sum-frequency generation (SFG).
Figure 2. QTekLaserTM fiber laser system with an integrated frequency doubler.
Specifications
Download 783 nm Fiber Laser Specifications
783 nm Fiber Laser — Specifications
|
Parameter |
Value |
Unit |
| Laser |
Wavelength |
783 |
nm |
| Operation mode |
CW |
/ |
| Max output power |
8 |
W |
| Linewidth |
<10 |
kHz |
| Output 1/e2 beam diameter |
1-2 |
mm |
| Beam quality (M2) |
<1.1 |
/ |
| Relative intensity noise (RIN) for freq. >10 kHz |
<-130 |
dBc/Hz |
| Fiber length to chassis |
2 |
m |
| Polarization direction |
Vertical |
/ |
| Polarization extinction ratio (PER) |
>20 |
dB |
| Optical signal-to-noise ratio (OSNR) |
60 |
dB |
| Electrical |
Fuse |
6.3A, 250VAC, 5X20mm |
/ |
| Remote interlock voltage |
3.3 |
V |
| Max power consumption |
254 |
W |
| AC power supply voltage |
110 |
V |
| General |
Warm-up time |
20 |
min |
| Cooling |
Chilled water |
/ |
| Suggested chiller temperature |
19 |
°C |
| Chilled water flow rate |
>=0.65 |
GPM |
| Room temperature |
17 – 25 |
°C |
| Room humidity |
30 – 60 |
% |
| Weight |
61.3 lbs. (27.8kg) |
|
QTekLaserTM lasers comply with Federal Regulations (21 CFR Subchapter J, Part 1040) as administered by the Center for Devices and Radiological Health and are certified to IEC 60825-1:2014 standards.
It is the end user's responsibility to ensure that no significant light is retroreflected back into QTekLaserTM systems as this can degrade performance and potentially damage the lasers. To prevent this, the use of an external optical isolator is strongly recommended. Damage due to retroreflected light is not covered under warranty.
Ordering Information
Part Number: QT-LASR-SHG-783-8-W-2-2.0-2
Laser Type: Seed laser + Er-doped fiber amp + SHG
Product Selection GuidePerformance
Laser Power vs. Current

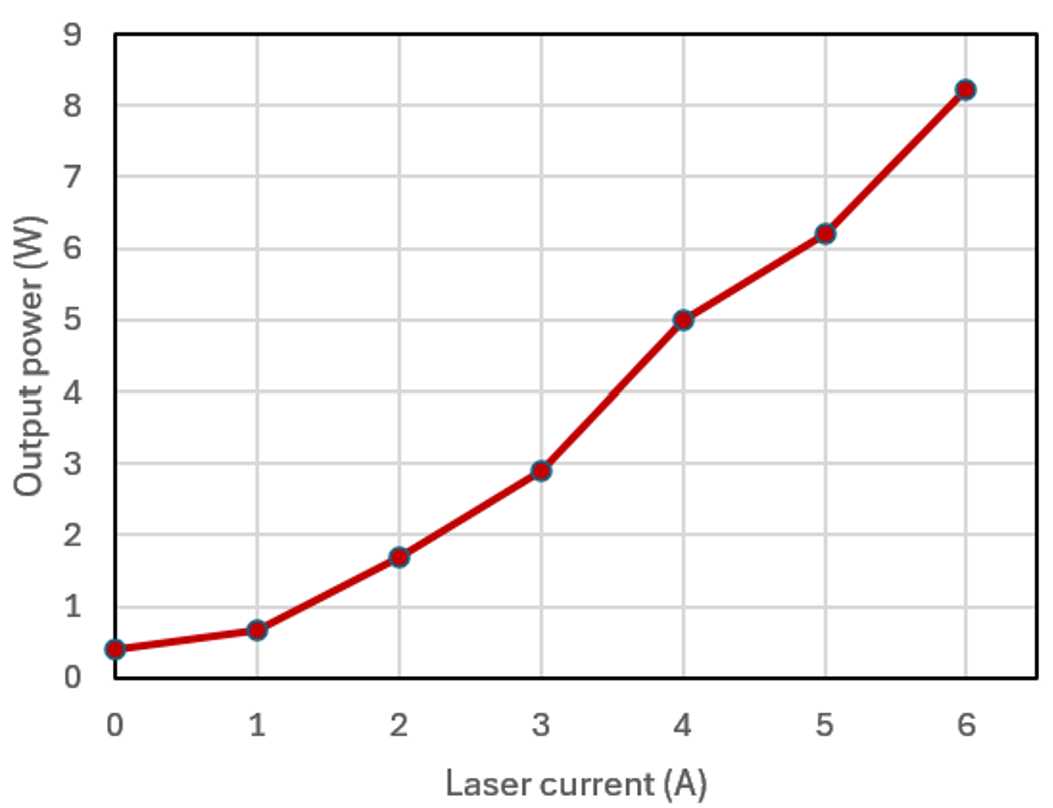

Figure 3. Laser Power vs. Current: 783 nm
Beam Quality

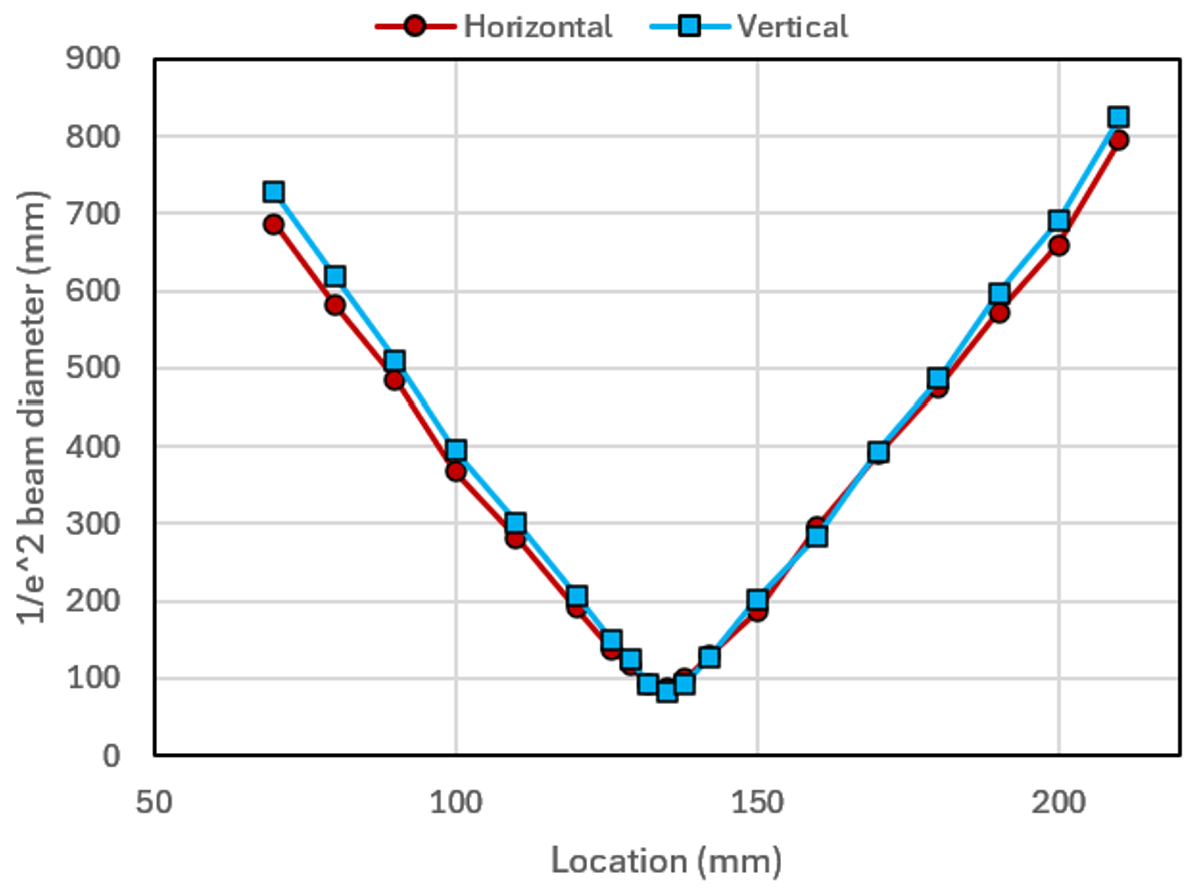

Figure 4. 783 nm beam quality. The M² value is fitted to be 1.02±0.05.
Beam Profile

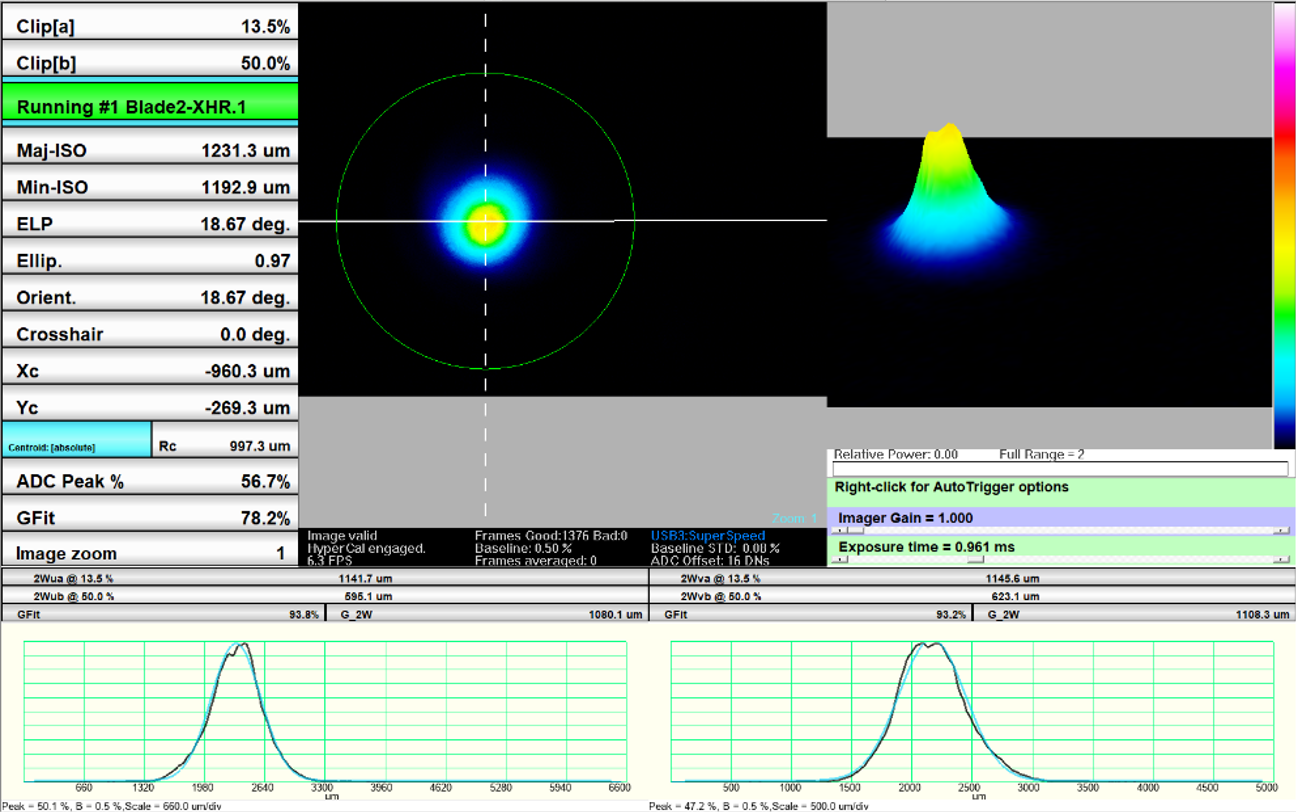

Figure 5. 783 nm beam profile. Measured at 35 cm from the output window , with 1/e² beam diameter of 1.1 mm horiz. and 1.1 mm vert.
Relative Intensity Noise (RIN)

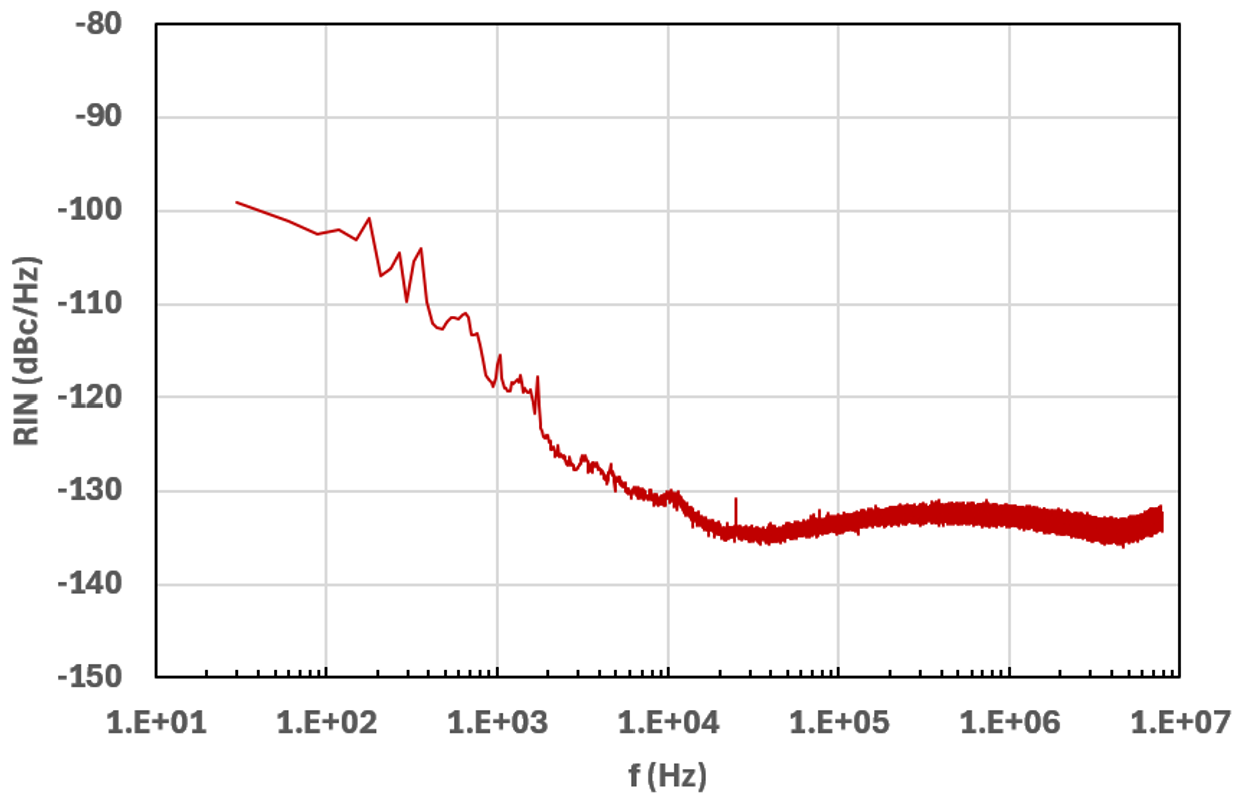

Figure 6. 783 nm relative intensity noise, <-130 dBc/Hz for freq. >10kHz.
Optical Spectrum

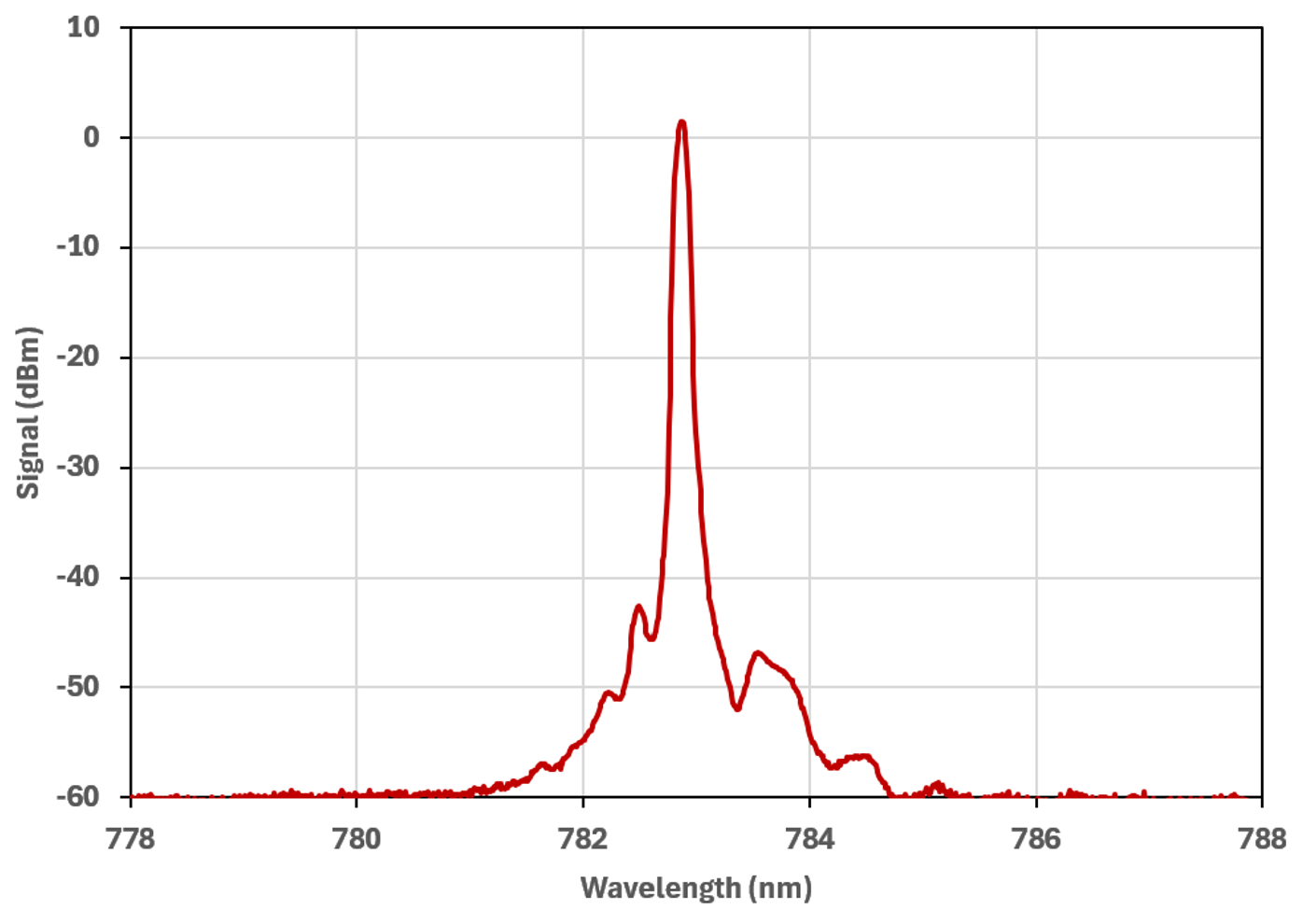

Figure 7. 783 nm optical spectrum, 60 dB OSNR.
Quantum Applications
In the near-IR, the 783 nm laser is well suited for neutral-atom quantum platforms using rubidium and cesium. Its narrow-linewidth, low-noise output supports optical-lattice and dipole trapping of ultracold rubidium, as well as blue-detuned nanophotonic traps for cesium atoms near optical waveguides, enabling precise atomic confinement, coherent manipulation, and atom–photon interfaces for quantum computing and quantum networking.
Mechanical Dimensions

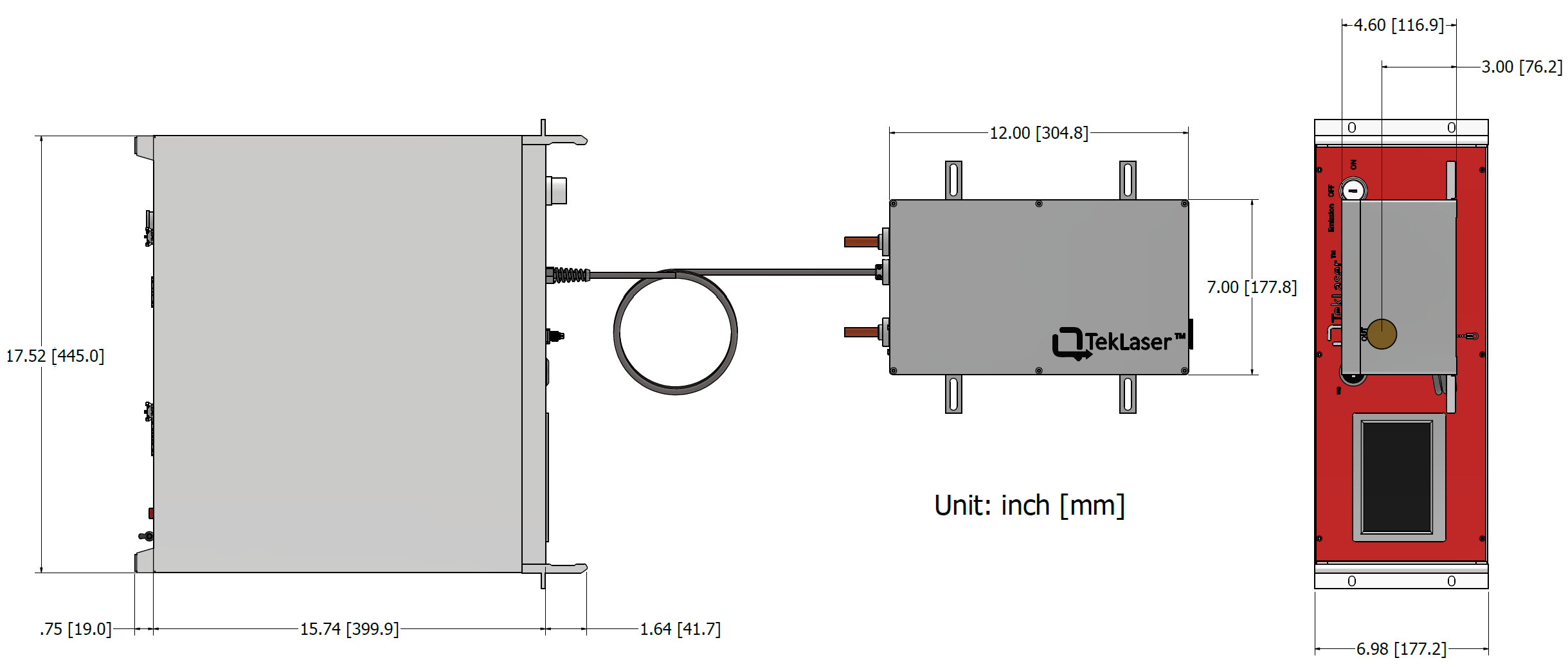

Figure 8. 783 nm fiber laser mechanical dimensions.
Product Photos

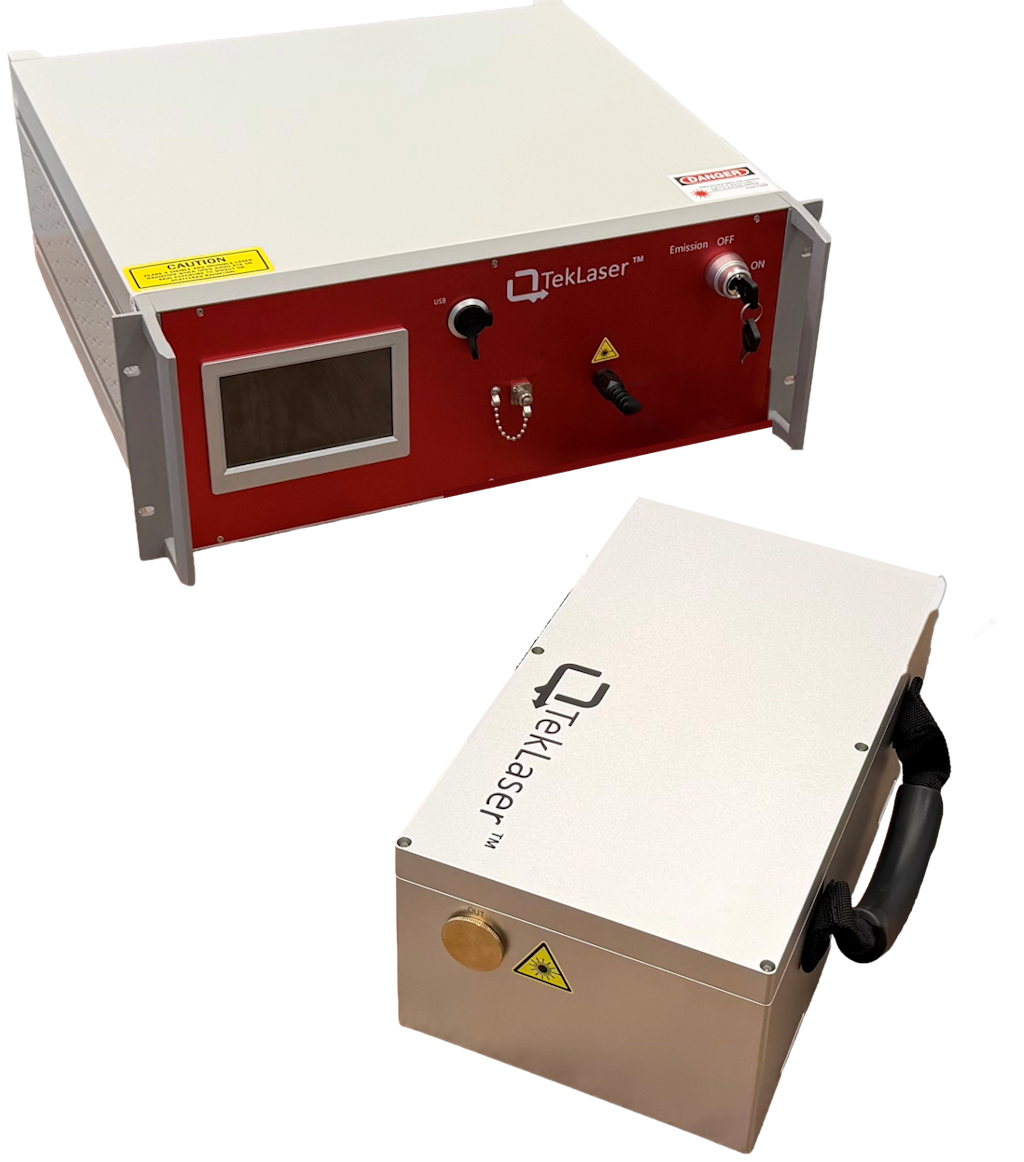

Figure 9. 783 nm fiber laser.
Figure 10. 783 nm fiber laser 4U chassis back panel water cooled.
