Single-Frequency Fiber Amplifiers

High Power, Low Noise, Polarization Maintaining (PM)
Yb-doped: 1012-1080 nm
Er-doped: 1530-1610 nm
Tm-doped: 1776-2040 nm

Product Description

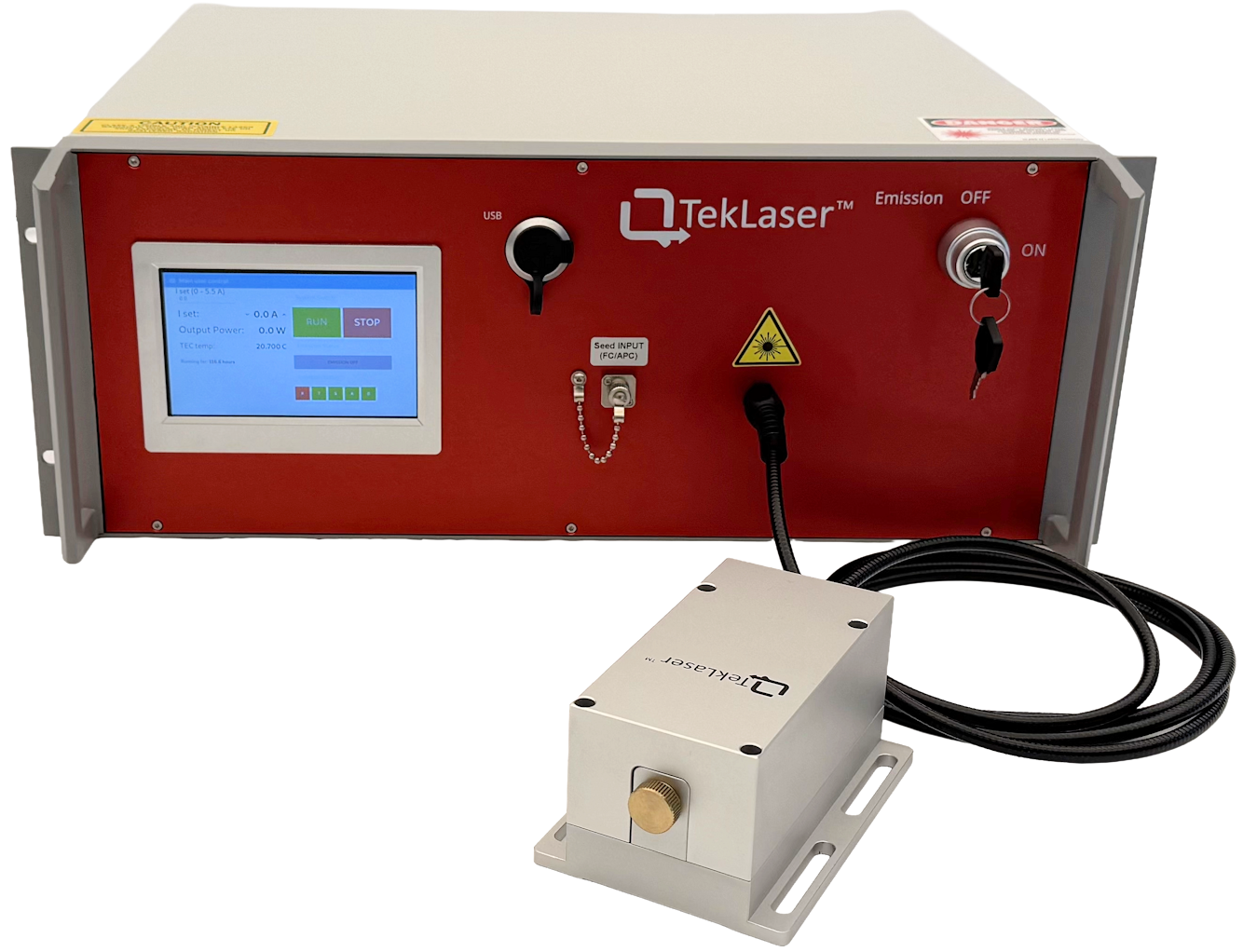

QTekLaser^TM products with model No. QT-SF-AMP-xx-xxxx-x-x-xxx-x are a series of fiber amplifier products, amplifying narrow-linewidth (<20 kHz) single-frequency laser light with max output power from 0.5 W to 100 W. A smart internet-of-things (IoT)-based control system is integrated to enhance a user-friendly interface. The system is packaged in a typical industrial 19’’ 3U or 4U rack-mountable chassis.

Product Selection Guide

Low-Noise PM Fiber Amplifier

Features

1012-1080 nm; 1530-1610 nm; 1776-2040 nm
High output power (up to 100 W)
SBS free
Low noise
Compatible with narrow linewidth laser seed
Excellent power stability
User-friendly interface via IoT technology
3 or 4U 19" Rack mount
Certified to IEC 60825-1:2014 safety standards

Applications

Frequency doubling or mixing
Laser cooling and trapping
Atomic interferometry
Quantum sensing
Quantum computing

Single Frequency

QTekLaser^TM amplifiers work with various kinds of seed lasers. They can be economic semiconductor diode lasers with MHz laser linewidth, robust fiber lasers with kHz linewidth, or cavity-locked ultra-stable lasers with Hz linewidth. Based on customer requirements, we can recommend the best options and integrate them into the laser system as illustrated in figure 1.

Diagram of a typical QTekLaser laser system. Seed laser and multi-stage amplifier

Figure 1. Typical single-frequency QTekLaser^TM fiber amplifier.

Specifications

QTekLaser^TM lasers comply with Federal Regulations (21 CFR Subchapter J, Part 1040) as administered by the Center for Devices and Radiological Health and are certified to IEC 60825-1:2014 standards.

It is the end user's responsibility to ensure that no significant light is retroreflected back into QTekLaser^TM systems as this can degrade performance and potentially damage the lasers. To prevent this, the use of an external optical isolator is strongly recommended. Damage due to retroreflected light is not covered under warranty.

Ordering Information

Product Selection Guide ordering information

Model: QT-SF-AMP-Yb-1013-100-W-0.7-1 is widely used for Rydberg excitation of neutral-atom-based quantum computing
Model: QT-SF-AMP-Yb-1064-100-W-0.7-1 is widely used for optical lattice experiment of cold atoms
Model: QT-SF-AMP-Er-1560-40-W-1.5-1 and QT-SF-AMP-Tm-1908-40-W-1.5-1 are widely used for optical frequency mixing
