Advanced Product Announcement
Diode-Based External Cavity Laser
Low Noise
Wavelength: 1561.7 nm
Narrow Linewidth: 2.85 kHz
Product Description
QTekLaserTM products with model No. QT-SF-AMP-xx-xxxx-x-x-xxx-x are a series of fiber amplifier products, amplifying narrow-linewidth (<20 kHz) single-frequency laser light with max output power from 0.5 W to 100 W. A smart internet-of-things (IoT)-based control system is integrated to enhance a user-friendly interface. The system is packaged in a typical industrial 19’’ 3U or 4U rack-mountable chassis.
Product Selection Guide

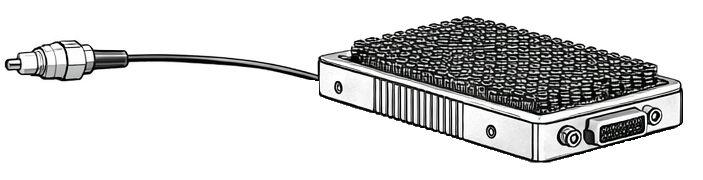

Low-Noise 1561 nm Laser
Features
- Wavelength: 1561.7 nm
- Output Power: >10 mW
- Low noise: <-140 dBc/Hz >1 kHz
- Narrow Linewidth: 2.85 kHz
- Excellent power stability
Applications
- Frequency doubling or mixing
- Laser cooling and trapping
- Atomic interferometry
- Quantum sensing
- Quantum computing
Specifications
It is the end user's responsibility to ensure that no significant light is retroreflected back into QTekLaserTM systems as this can degrade performance and potentially damage the lasers. To prevent this, the use of an external optical isolator is strongly recommended. Damage due to retroreflected light is not covered under warranty.
Ordering Information
Model: QT-ECL-SEED-1561.7-10-2-0
Performance
Broad Optical Bandwidth
Relative Intensity Noise (RIN)
1064 nm 50 W
795 nm 4 W RIN
1590 nm 10 W RIN
Beam Quality Factor 𝑀2<1.1
Side Mode Suppression Ratio
1064 nm 59 dB
Polarization Extinction Ratio: 20-35 dB
Application in AMO Lab

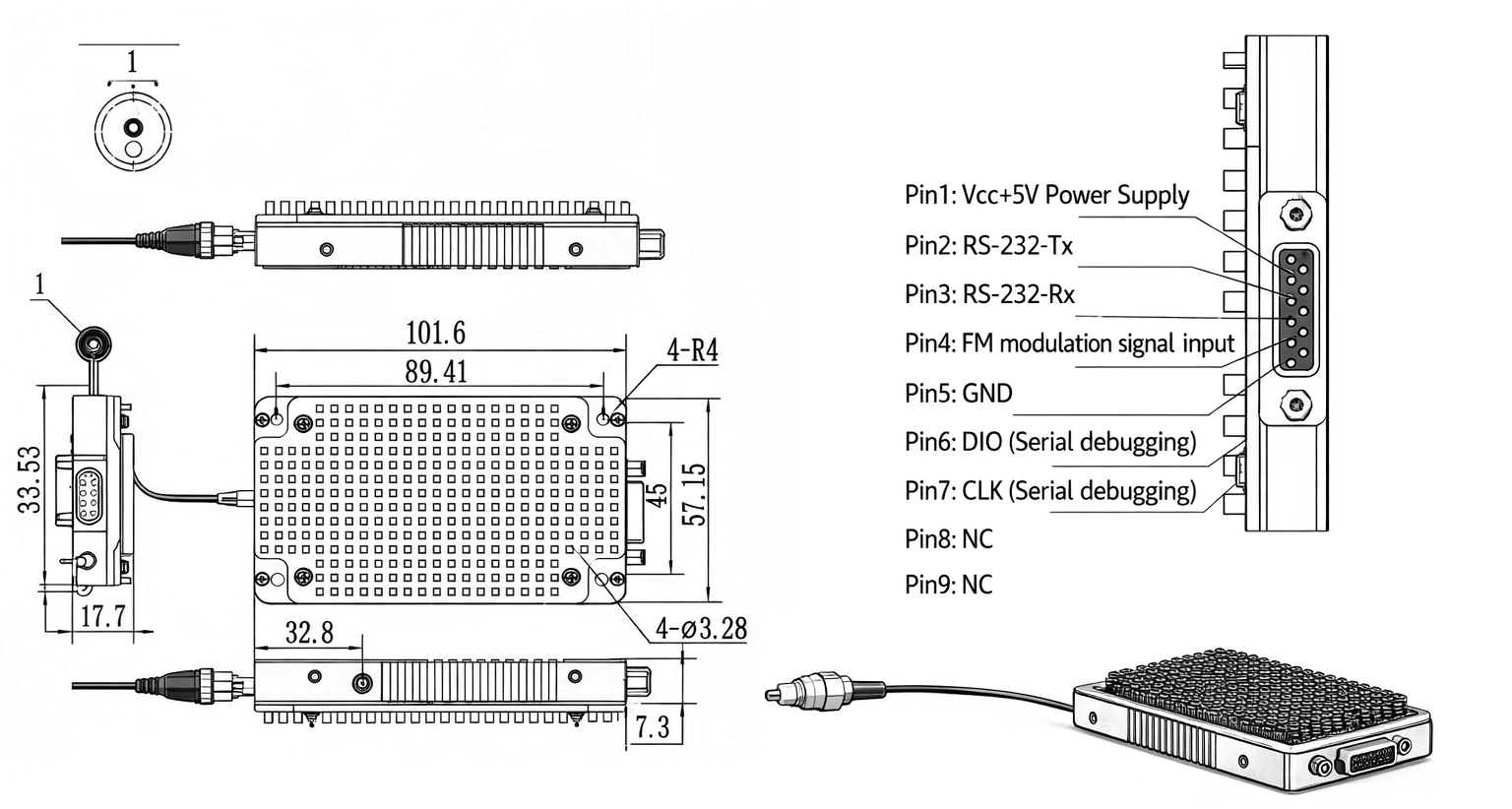

Mechanical Dimensions
